Specifications
- LANDING LEG
Two speed landing leg shall be provided at the front end
- AXLES 13T/16T/18T
Axle shall be provided. MAKE-YORK/JOST/BPW/FUWA/AL/TATA
- KING PIN
2” king pin equivalent to IS: 6763 Part I provided.
- SUSPENSION
13T/15T/16T/18T capacity leaf spring suspension with load equalizing brackets MAKE-YORK./JOST/BPW/FUWA/AAT
- TYRE
10.00 x 20 - 16 PR. MAKE-JK/CEAT/APOLLO/MICHELIN/CONTINENTAL
- WHEEL RIM
7.50 x 20. MAKE-WHEELS INDIA/KALYANI/VAL
- BRAKES
Wabco twin line ABS air brake system coupled to tractor brake system. Trailer brakes are actuated from the tractor. T24 brake chamber shall be provided on all axles. Parking brake shall be pneumatically actuated.
- ELECTRICAL
24 V DC electrical include tail lamp, brake lamp and direction indicator lamps fitted at rear end of trailer. Side Marker lamps shall be provided on both sides
- SURFACE PREPARATION
Surface shall be cleaned by shot blasting followed by painting which confirms ASTM B117.2011
- PAINTING
One coat of primer and one coat of finish PU paint with color of customer choice.
- OTHER FITMENTS
Fitments such SUPD, RUPD, TOOL BOX, reflectors on both sides and rear shall be provided as per CMVR.

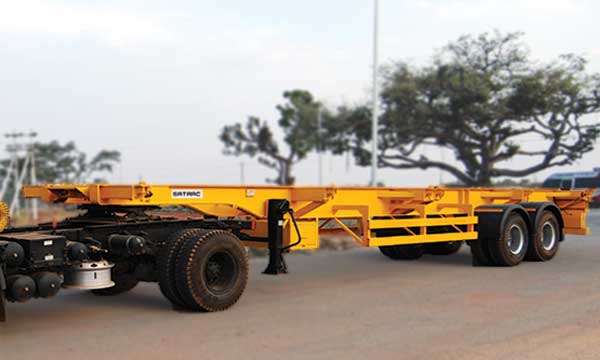

- CHASSIS
All steel welded construction. 2 nos Main longitudinal members are high strength, lighter weight, Parallel flange Beam of IS2062 (or) Equivalent grade steel running along the full length of the trailer. Cross members - Rolled or Folded of material IS-2062/ST-52 are positioned at suitable locations. 4/8/12 nos of twist lock shall be provided to suit 20 & 40 feet containers.
